Engineering Information

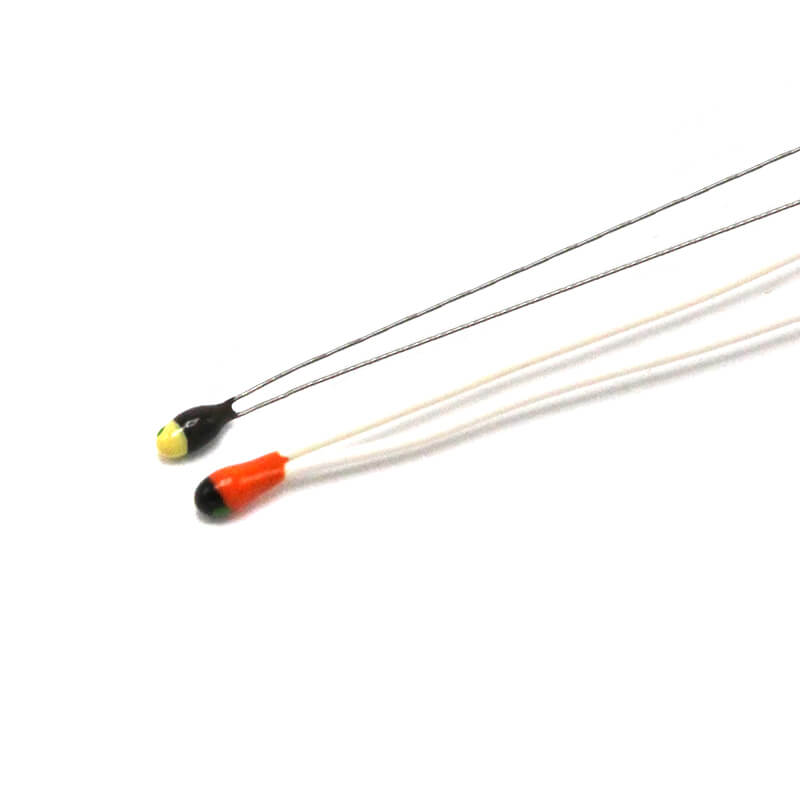

• NTC thermistor
• Operating temperature range: -55°C to 90°C
• Standard resistance range at 25°C: 2.25k to 30k ohms
• Power rating: 0.200 W at 25°C, derate to 0 W at 125°C
• Thermal time constant: 10/20/25 seconds max in still air*
• Dissipation constant: 1 mW/°C min in still air
• Curves: B, M
• Interchangeable tolerances: +/- 0.1°C or +/-0.2°C
• #28-#32 AWG leads available
• Lead length: 7.6-100cm
• Insulation and bead color can be specified
• Acceptable for use in NASA space programs specifying quality level (Grade) 1 parts
• Single lot traceability

*Depends on lead type configuration
